FlexiEdge is a range of fast-action industrial doors offering exceptional safety, damage resistance and weather resistance. Suitable for any high-frequency application for all vehicles including fork lifts and pedestrian access. FlexiEdge doors have been installed throughout Europe in warehousing, storage and logistics, retail, manufacturing industry, public transport, airports, food industry, brewing, pharma-ceuticals and waste treatment plants.

  • Choice of Drive Systems
  • Environmental Benefits
  • Rapid Payback
  • Comfort Conditions
  • Standards Compliance
  • Activation Systems

Environmental Benefits

Speed of operation minimises open time, thus reducingheat loss from the building, conserving energy andlowering CO2 emissions.

Rapid Payback

Energy savings reduce fuel bills and mean that doors have a shorter payback period. We can provide a costm analysis for specific installations to demonstrate savings.

Comfort Condition

Rapid operating times help to maintain internaltemperatures, so improving staff working conditions, and reducing entry of pollution, dust, vermin and noise.

Standard Compliance

All doors are CE marked and comply with and generally exceed applicable European harmonised standards including EN 13241-1. Industrial, commercial and garage doors and gates.

Wind resistant high speed roll up door for exterior use

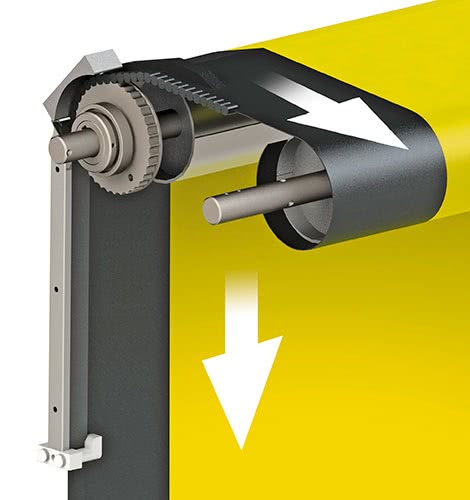

Innovative push-pull technology opens and closes the roll up door without ballast

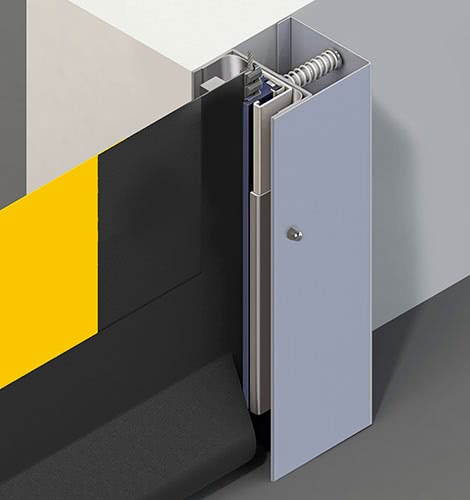

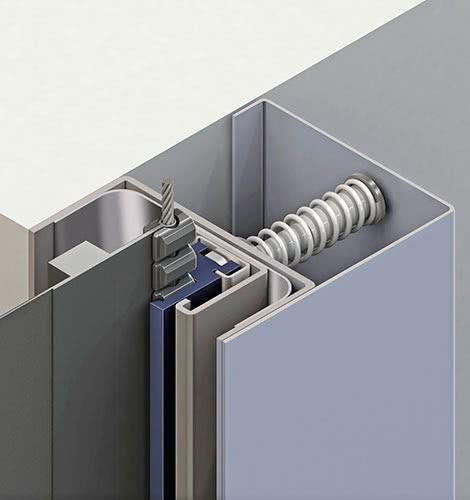

Side reinforcement for increased wind resistance of the roll up door
Superior and tight seal around the roll up door keeps out dirt, dust, wind, rain and snow

Door Selection

All doors are purpose-made for each project. The table below summarises the range available. Doors sizes and speeds are indicative only, and greater speed, width or height may be possible in individual cases. For the weather performance view our brochure for a complete overview

External Doors

Model Drive System Size – Width x Height Opening (m/s) Closing (m/s)
M2 P Positive 5.5×5.5 2.4 1.2
M3 P Positive 9.0×5.5 0.8 0.4
D-501 P Positive 5.5×5.5 2.4 1.2

External All-Weather Doors

 Model  Drive System  Size – Width x Height  Opening (m/s)  Closing (m/s)
 M2 AW  Positive  5.5×5.5  2.4 1.2
 M3 AW  Positive  8.5×5.5  0.8 0.4

Internal Doors

Model Drive System Size – Width x height  Opening (m/s) Closing (m/s)
M2 C Positive 5.5×5.5 2.4 1.2
M3 C Positive 11.0×5.5 0.8 0.4
D-501 C Positive 5.5×5.5 2.4 1.2

Internal Doors – Space Saving

Model Drive System Size – Width x height Opening (m/s) Closing (m/s)
D-310 LF Low Friction 3.0×3.0 1.0 1.0
D-313 LF Low Friction 3.5×3.5 2.7 0.5
D-311 LF Low Friction 4.0×4.0 1.2 0.5

Special Purpose Doors

Model Drive System Size – Width x Height Opening (m/s) Closing (m/s)
D-313 LF C Low Friction 3.5 x 3.5 2.7 0.5
D-311 LF C Low Friction 4.0 x 4.0 1.2 (2.0*) 0.5
M2 E Positive 5.5 x 5.5 1.2 0.6
D-303 LF E Low Friction 3.5 x 3.5 2.0 0.5
M2F Positive 4.0 x 5.5 2.4 1.2

* Optional Speed
